Polyethylene water service pipe

Entry in PEX and plastic supply pipe · Updated · Written by the Know Your Pipes editors from the sources listed under References

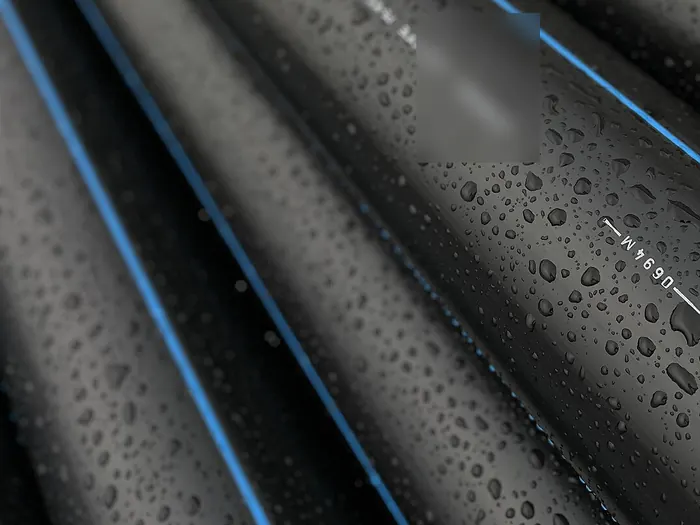

Polyethylene water service pipe is flexible plastic tubing buried underground to form the water line between a public main or a well and a building.[1][2] It is also called PE or HDPE service tubing. It is made of high-density polyethylene, and a Plastics Pipe Institute detail drawing calls for the service to run as one continuous length, with no joints, from the tap on the main to the meter.[3]

The first polyethylene pipes went into US drinking-water systems in the early 1960s.[4] Some early-generation materials failed, more often where water was warm, and later research traced this to depletion of the stabilizers that protect the inner wall from oxidation.[4] Compounds for drinking-water pipe now contain additives meant to resist the long-term oxidizing effect of disinfectants.[1]

1 Standards

Utility service tubing in sizes from 3/4 in to 3 in is covered by AWWA C901.[1] After a revision published in 2021, the standard allows only PE4710 compounds with the highest oxidative-resistance class, CC3, and only one wall ratio, SDR 9.[1] Under the conditions in its selection table, the Plastics Pipe Institute projects such tubing to resist chlorine and chloramine for at least 100 years.[1] It does not recommend PE where chlorine dioxide is the residual disinfectant.[1]

AWWA C901 sizes follow the iron pipe size system, based on outside diameter and SDR.[6] The Plastics Pipe Institute notes that AWWA C901 does not permit lead as an intentional ingredient and that PE pipe certified to NSF/ANSI/CAN 61, NSF/ANSI/CAN 372 or NSF 14 for potable water is lead-free under the Safe Drinking Water Act.[2] See NSF/ANSI 61.

2 Joints and installation

A Plastics Pipe Institute detail for a 1 in HDPE service shows the following practices.[3]

Practices in a typical PE water service detail
ItemPractice shown
Pipe1 in HDPE PE4710, SDR 9, AWWA C901
JointsNone between tapping tee and meter bend; fusion preferred
Brass fittingsCompression type, with a liner or stiffener in the pipe
Locating10 AWG copper tracer wire above the pipe
WarningWater warning tape at least 6 in above the pipe

Buried plastic pipe is hard to locate, so metallic tracer wire is laid with it for electronic locators to follow.[3][6] See heat fusion joints and compression fittings. Before any digging, the 811 call-before-you-dig service is used to have buried utilities marked.[6]

3 Limits and uses

Polyethylene is a cold-water material. The Plastics Pipe Institute gives 140°F as the typical maximum service temperature for HDPE pressure pipe, while cross-linked PEX pipe is rated for service at 180°F or more.[5] PEX is also approved for water service lines.[5]

Water utilities replacing lead service lines use HDPE in open trenches and with trenchless methods that pull new pipe through the ground.[2] PE service tubing should not be confused with polybutylene, a different plastic covered in its own entry.
